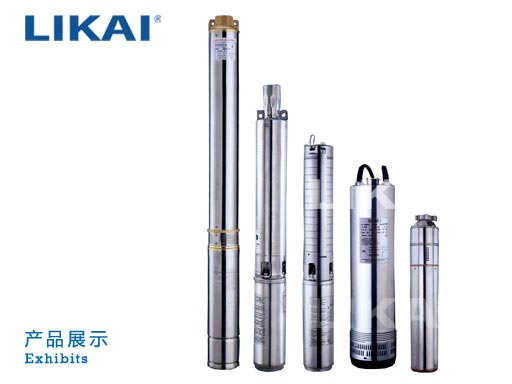

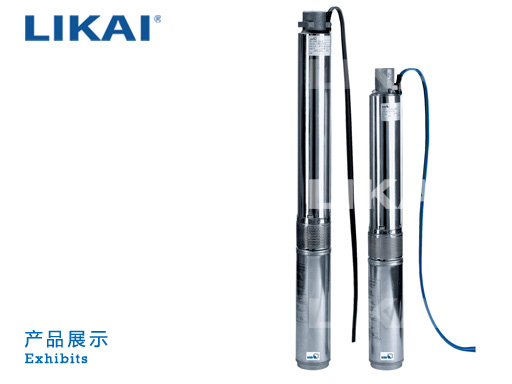

不銹鋼系列深井泵是耐磨型電泵，動力部份配用目前生產的水浸式不銹鋼潛水電機。選用不銹鋼外殼、軸芯、聯軸器、入水座和泵頭（或銅合金入水座、泵頭），高強度抗耐磨復合高分子材料葉輪和不銹鋼導流殼，全新“浮動式”結構葉輪在工作期間對電機無軸向壓力。特別適用于工礦業、農業、建筑業、養殖業、食品飲料業及家庭式（或高層送水使用）。
結構簡單、維護方便、占地面積小、節省原材料、安全可靠、安裝方便、使用簡單、
不銹鋼系列深井泵是高性能耐磨型電泵，動力部份配用目前水浸式不銹鋼潛水電機。選用優質不銹鋼外殼、軸芯、聯軸器、入水座和泵頭（或銅合金入水座、泵頭），高強度抗耐磨復合高分子材料葉輪和不銹鋼導流殼，全新“浮動式”結構葉輪在工作期間對電機無軸向壓力。特別適用于工礦業、農業、建筑業、養殖業、食品飲料業及家庭式（或高層送水使用）。
|
型 號 |
揚程 |
流量(m3/h) |
電機功率(KW) |
轉速(r/min) |
|
100QJ1-6 |
30 |
1 |
0.37 |
2850 |
|
100QJ 1-9 |
46 |
1 |
0.37 |
2850 |
|
100QJ 1-13 |
67 |
1 |
0.55 |
2850 |
|
100QJ 1-17 |
87 |
1 |
0.75 |
2850 |
|
100QJ 1-21 |
108 |
1 |
1.1 |
2850 |
|
100QJ 1-25 |
129 |
1 |
1.1 |
2850 |
|
100QJ 1-28 |
145 |
1 |
1.5 |
2850 |
|
100QJ 1-32 |
165 |
1 |
1.5 |
2850 |
|
100QJ 1-36 |
186 |
1 |
1.5 |
2850 |
|
100QJ 1-39 |
202 |
1 |
2.2 |
2850 |
|
100QJ 1-42 |
217 |
1 |
2.2 |
2850 |
|
100QJ 1-46 |
238 |
1 |
2.2 |
2850 |
|
100QJ 1-50 |
260 |
1 |
2.2 |
2850 |
|
100QJ 3-6 |
24 |
3 |
0.37 |
2850 |
|
100QJ 3-9 |
36 |
3 |
0.55 |
2850 |
|
100QJ 3-12 |
49 |
3 |
0.75 |
2850 |
|
100QJ 3-15 |
61 |
3 |
1.1 |
2850 |
|
100QJ 3-18 |
74 |
3 |
1.1 |
2850 |
|
100QJ 3-22 |
91 |
3 |
1.5 |
2850 |
|
100QJ 3-27 |
111 |
3 |
2.2 |
2850 |
|
100QJ 3-32 |
131 |
3 |
2.2 |
2850 |
|
100QJ 3-38 |
157 |
3 |
3 |
2850 |
|
100QJ 3-43 |
178 |
3 |
3 |
2850 |
|
100QJ 5-4 |
15 |
5 |
0.37 |
2850 |
|
100QJ 5-6 |
22 |
5 |
0.55 |
2850 |
|
100QJ 5-8 |
30 |
5 |
0.75 |
2850 |
|
100QJ 5-12 |
45 |
5 |
1.1 |
2850 |
|
100QJ 5-17 |
64 |
5 |
1.5 |
2850 |
|
100QJ 5-21 |
79 |
5 |
2.2 |
2850 |
|
100QJ 5-25 |
94 |
5 |
2.2 |
2850 |
|
100QJ 5-29 |
108 |
5 |
3.0 |
2850 |
|
100QJ 5-33 |
123 |
5 |
3.0 |
2850 |
|
100QJ 5-38 |
142 |
5 |
4.0 |
2850 |
|
100QJ 5-43 |
161 |
5 |
4.0 |
2850 |
|
100QJ 8-5 |
19 |
8 |
0.75 |
2850 |
|
100QJ 8-7 |
27 |
8 |
1.1 |
2850 |
|
100QJ 8-10 |
39 |
8 |
1.5 |
2850 |
|
100QJ 8-12 |
47 |
8 |
2.2 |
2850 |
|
100QJ 8-15 |
59 |
8 |
2.2 |
2850 |
|
100QJ 8-18 |
71 |
8 |
3.0 |
2850 |
|
100QJ 8-21 |
83 |
8 |
4.0 |
2850 |
|
100QJ 8-25 |
99 |
8 |
4.0 |
2850 |
|
100QJ 8-30 |
119 |
8 |
5.5 |
2850 |
|
100QJ 8-37 |
147 |
8 |
5.5 |
2850 |
|
100QJ 8-44 |
174 |
8 |
7.5 |
2850 |
|
100QJ 8-50 |
198 |
8 |
7.5 |
2850 |
|
100QJ 12-5 |
25 |
12 |
1.5 |
2850 |
|
100QJ 12-7 |
35 |
12 |
2.2 |
2850 |
|
100QJ 12-10 |
50 |
12 |
3.0 |
2850 |
|
100QJ 12-13 |
66 |
12 |
4.0 |
2850 |
|
100QJ 12-15 |
76 |
12 |
5.5 |
2850 |
|
100QJ 12-18 |
91 |
12 |
5.5 |
2850 |
|
100QJ 12-21 |
106 |
12 |
7.5 |
2850 |
|
100QJ 12-25 |
126 |
12 |
7.5 |
2850 |
|
133QJ17-1 |
6.5 |
17 |
0.55 |
2850 |
|
133QJ 17-2 |
13.5 |
17 |
1.1 |
2850 |
|
133QJ 17-3 |
20.5 |
17 |
2.2 |
2850 |
|
133QJ 17-4 |
28 |
17 |
2.2 |
2850 |
|
133QJ 17-5 |
35 |
17 |
3.0 |
2850 |
|
133QJ 17-6 |
42 |
17 |
4.0 |
2850 |
|
133QJ 17-7 |
49 |
17 |
4.0 |
2850 |
|
133QJ 17-8 |
57 |
17 |
5.5 |
2850 |
|
133QJ 17-9 |
64 |
17 |
5.5 |
2850 |
|
133QJ 17-10 |
72 |
17 |
5.5 |
2850 |
|
133QJ 17-11 |
79 |
17 |
7.5 |
2850 |
|
133QJ 17-13 |
87 |
17 |
7.5 |
2850 |
|
133QJ 17-12 |
95 |
17 |
7.5 |
2850 |
|
133QJ 17-14 |
102 |
17 |
9.2 |
2850 |
|
133QJ 17-15 |
109 |
17 |
9.2 |
2850 |
|
133QJ 17-16 |
116 |
17 |
9.2 |
2850 |
|
133QJ 17-17 |
123 |
17 |
9.2 |
2850 |
|
133QJ 17-18 |
130 |
17 |
11 |
2850 |
|
133QJ 17-19 |
138 |
17 |
11 |
2850 |
|
133QJ 17-20 |
145 |
17 |
11 |
2850 |
|
133QJ 17-21 |
152 |
17 |
13 |
2850 |
|
133QJ 17-22 |
160 |
17 |
13 |
2850 |
|
133QJ 17-23 |
167 |
17 |
13 |
2850 |
|
133QJ 17-24 |
174 |
17 |
13 |
2850 |
|
133QJ 17-25 |
181 |
17 |
15 |
2850 |
|
133QJ 17-26 |
189 |
17 |
15 |
2850 |
|
133QJ 30-1 |
7.5 |
30 |
1.1 |
2850 |
|
133QJ 30-2 |
15 |
30 |
2.2 |
2850 |
|
133QJ 30-3 |
22 |
30 |
3.0 |
2850 |
|
133QJ 30-4 |
29 |
30 |
4.0 |
2850 |
|
133QJ 30-5 |
37 |
30 |
5.5 |
2850 |
|
133QJ 30-6 |
44 |
30 |
5.5 |
2850 |
|
133QJ 30-7 |
52 |
30 |
7.5 |
2850 |
|
133QJ 30-8 |
59 |
30 |
7.5 |
2850 |
|
133QJ 30-9 |
66 |
30 |
9.2 |
2850 |
|
133QJ 30-10 |
74 |
30 |
9.2 |
2850 |
|
133QJ 30-11 |
81 |
30 |
9.2 |
2850 |
|
133QJ 30-12 |
88 |
30 |
11 |
2850 |
|
133QJ 30-13 |
96 |
30 |
11 |
2850 |
|
133QJ 30-14 |
103 |
30 |
13 |
2850 |
|
133QJ 30-15 |
110 |
30 |
13 |
2850 |
|
133QJ 30-16 |
118 |
30 |
15 |
2850 |
|
133QJ 30-17 |
125 |
30 |
15 |
2850 |
|
133QJ 30-18 |
132 |
30 |
18.5 |
2850 |
|
133QJ 30-19 |
140 |
30 |
18.5 |
2850 |
|
133QJ 30-20 |
147 |
30 |
18.5 |
2850 |
|
133QJ 30-21 |
155 |
30 |
18.5 |
2850 |
|
133QJ 30-22 |
162 |
30 |
22 |
2850 |
|
133QJ 30-23 |
169 |
30 |
22 |
2850 |
|
133QJ 30-24 |
177 |
30 |
22 |
2850 |
|
133QJ 30-25 |
184 |
30 |
22 |
2850 |
|
150QJ 42-1 |
8.5 |
42 |
2.2 |
2850 |
|
150QJ 42-2 |
17 |
42 |
3.0 |
2850 |
|
150QJ 42-3 |
26.5 |
42 |
5.5 |
2850 |
|
150QJ 42-4 |
36 |
42 |
7.5 |
2850 |
|
150QJ 42-5 |
45 |
42 |
7.5 |
2850 |
|
150QJ 42-6 |
54 |
42 |
9.2 |
2850 |
|
150QJ 42-7 |
63 |
42 |
11 |
2850 |
|
150QJ 42-8 |
72 |
42 |
13 |
2850 |
|
150QJ 42-9 |
80 |
42 |
15 |
2850 |
|
150QJ 42-10 |
89 |
42 |
15 |
2850 |
|
150QJ 42-11 |
98 |
42 |
18.5 |
2850 |
|
150QJ 42-12 |
107 |
42 |
18.5 |
2850 |
|
150QJ 42-13 |
116 |
42 |
22 |
2850 |
|
150QJ 42-14 |
125 |
42 |
22 |
2850 |
|
150QJ 42-15 |
134 |
42 |
22 |
2850 |
|
150QJ 42-16 |
143 |
42 |
25 |
2850 |
|
150QJ 42-17 |
152 |
42 |
25 |
2850 |
|
150QJ 42-18 |
161 |
42 |
30 |
2850 |
|
150QJ 42-19 |
170 |
42 |
30 |
2850 |
|
150QJ 42-20 |
179 |
42 |
30 |
2850 |
|
150QJ 42-21 |
188 |
42 |
37 |
2850 |
|
150QJ 42-22 |
197 |
42 |
37 |
2850 |
|
150QJ 60-1 |
6 |
60 |
2.2 |
2850 |
|
150QJ 60-2-2 |
10.5 |
60 |
3.0 |
2850 |
|
150QJ 60-2 |
12.5 |
60 |
4.0 |
2850 |
|
150QJ 60-3 |
20 |
60 |
5.5 |
2850 |
|
150QJ 60-4 |
29 |
60 |
7.5 |
2850 |
|
150QJ 60-5 |
37 |
60 |
9.2 |
2850 |
|
150QJ 60-6 |
45 |
60 |
11 |
2850 |
|
150QJ 60-7 |
53 |
60 |
13 |
2850 |
|
150QJ 60-8-2 |
56 |
60 |
13 |
2850 |
|
150QJ 60-8 |
61 |
60 |
15 |
2850 |
|
150QJ 60-9-2 |
64 |
60 |
15 |
2850 |
|
150QJ 60-9 |
69 |
60 |
18.5 |
2850 |
|
150QJ 60-10 |
77 |
60 |
18.5 |
2850 |
|
150QJ 60-11 |
85 |
60 |
22 |
2850 |
|
150QJ 60-12 |
93 |
60 |
22 |
2850 |
|
150QJ 60-13 |
100 |
60 |
22 |
2850 |
|
150QJ 60-14 |
106 |
60 |
25 |
2850 |
|
150QJ 60-15 |
114 |
60 |
25 |
2850 |
|
150QJ 60-16 |
122 |
60 |
30 |
2850 |
|
150QJ 60-17 |
130 |
60 |
30 |
2850 |
|
150QJ 60-18 |
140 |
60 |
30 |
2850 |
|
150QJ 60-19 |
148 |
60 |
37 |
2850 |
|
150QJ 60-20 |
155 |
60 |
37 |
2850 |
|
150QJ 60-21 |
163 |
60 |
37 |
2850 |
